Engenius Dual-Band Indoor WiFi 6 Access Point – ECW212L
Cloud Managed 4×4 Lite Indoor Dual-Band WiFi 6 Access Point
Product Highlights
- Reliable Wi-Fi 6 performance for seamless connectivity.
- Covers up to 1,200 sq. ft. and supports 100 devices simultaneously.
- Enjoy smooth streaming and video calls with speeds up to 3.5 Gbps.
- Ensures stable connections for both new and legacy devices.
- Enhanced throughput and flexible installation with the 2.5 GbE PoE+ port, supporting runs up to 100 meters.
- Stay secure with the latest WPA3 Enterprise and WPA3 encryption.
- Simplify network management via EnGenius Cloud and an intuitive mobile app.
- Quick setup and remote monitoring with easy device registration.

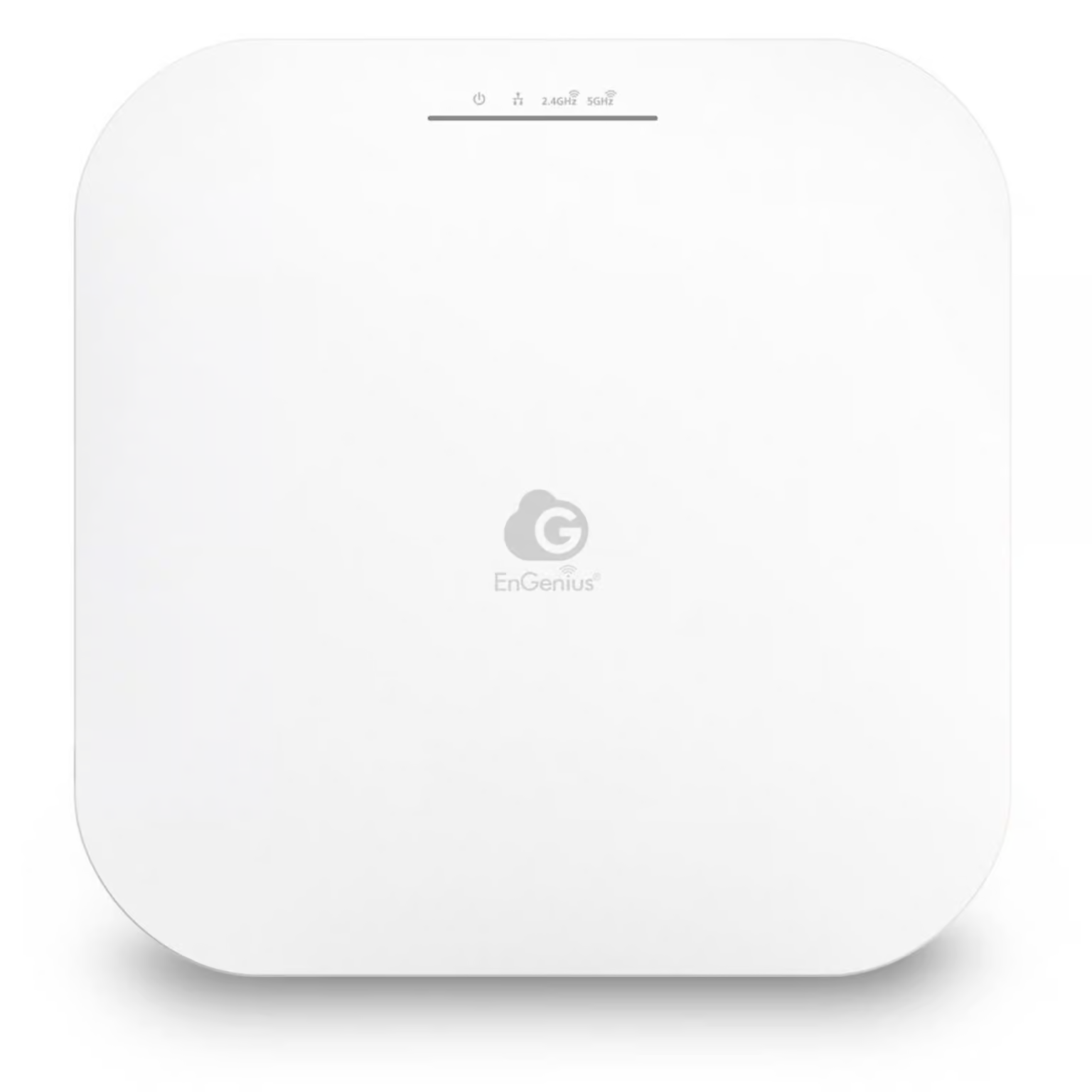

- Modern, low-profile ceiling design with LED indicators that blend into any setting.
- Hassle-free installation with simple mounting options and Kensington lock support.
- Perfect for restaurants, cafés, boutique shops, bars, repair centers, law firms, dental offices, urgent care facilities, and more.
| Technical Specifications |
|---|
| Standards |
| IEEE 802.11ax on 2.4 GHz |
| IEEE 802.11ax on 5 GHz |
| Backward compatible with 802.11a/b/g/n/ac |
| Processor |
| Mediatek MT7986A Quad-core A53 2GHz |
| Antenna |
| 4 × 2.4 GHz: 5 dBi |
| 4 × 5 GHz: 5 dBi |
| Integrated Omni-Directional Antenna |

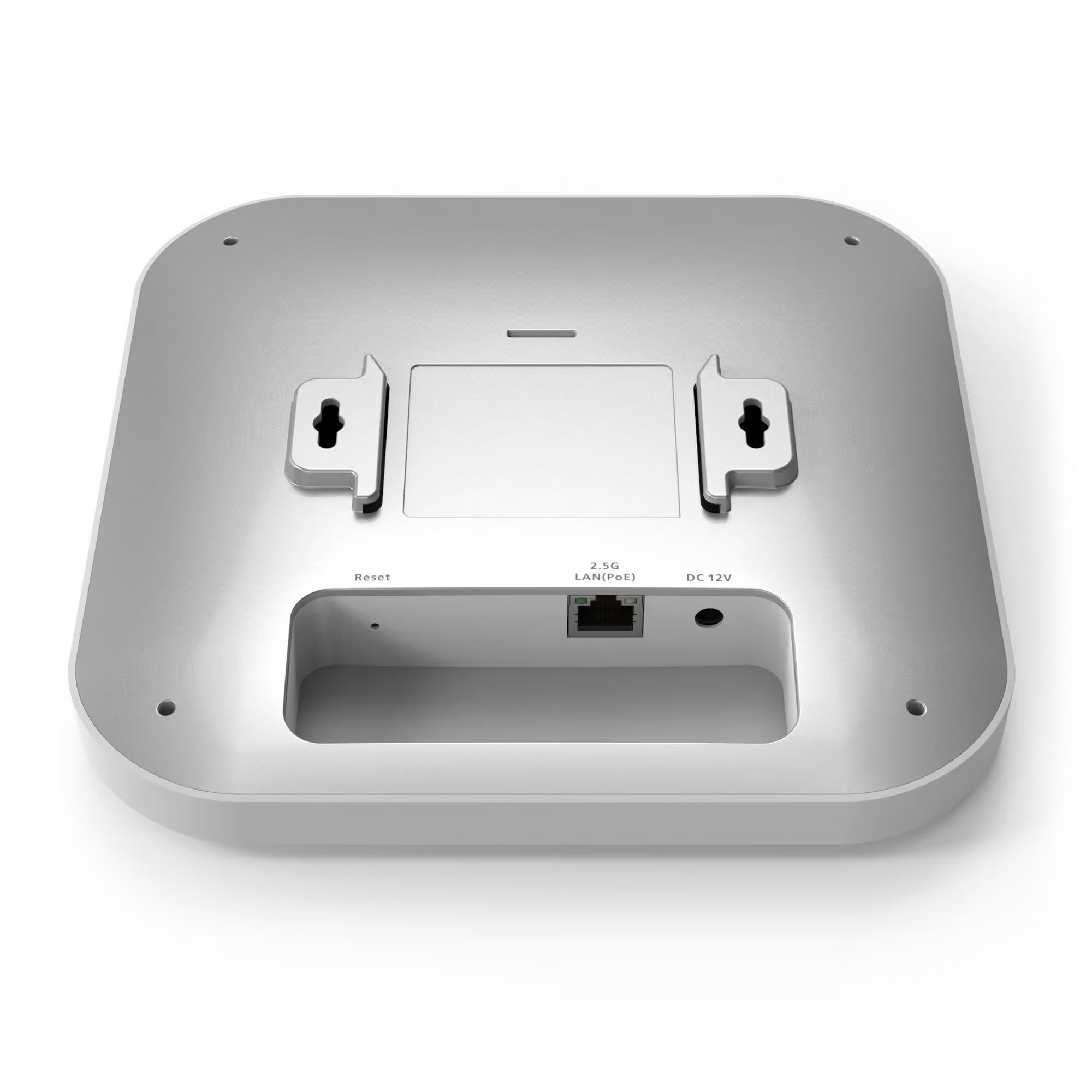

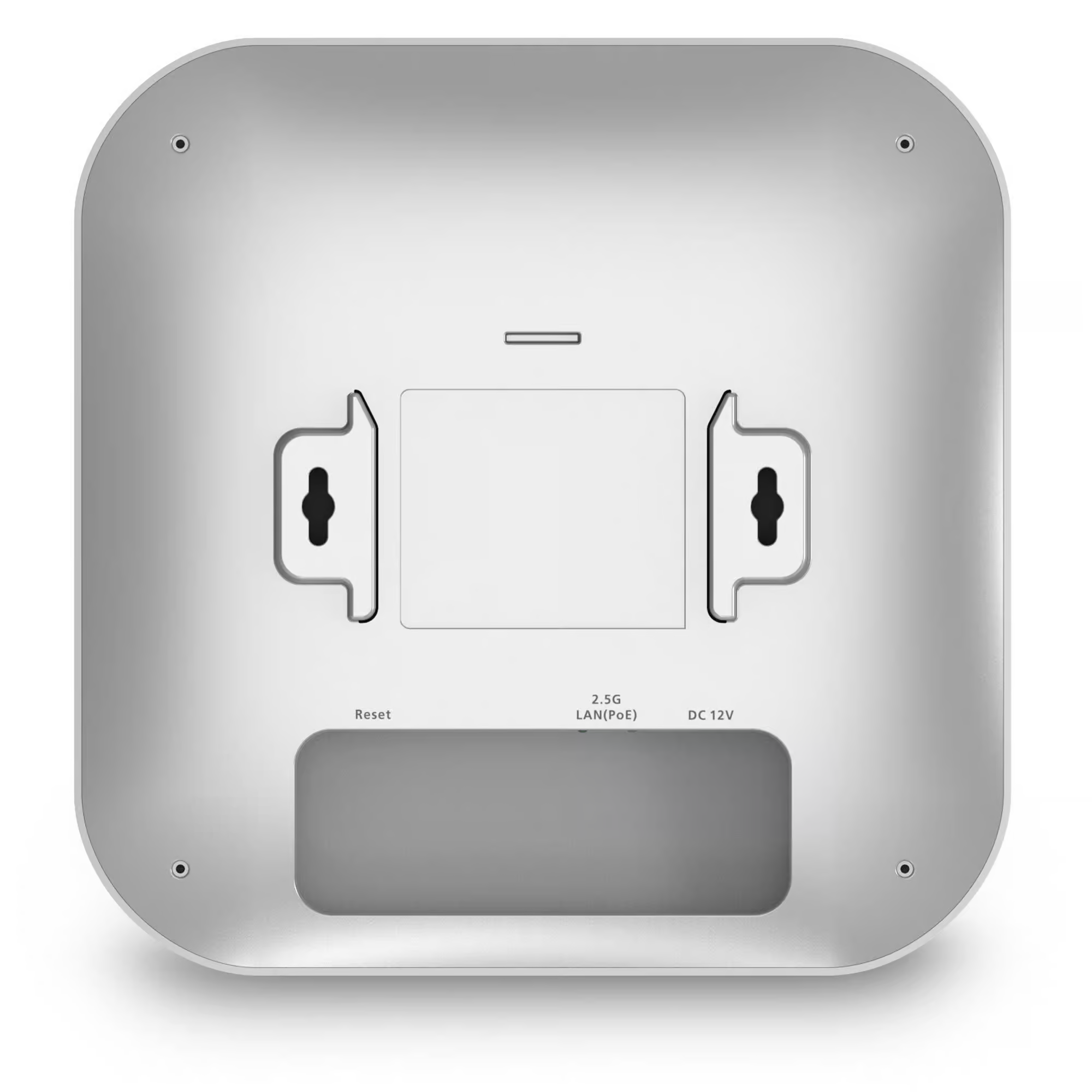

| Physical Interface |
| 1 × 10/100/1000/2500 N-BASE-T RJ-45 Ethernet Port |
| 1 × DC Jack |
| 1 × Reset Button |
| LED Indicators |
| Power |
| LAN |
| 2.4 GHz |
| 5 GHz |
| Power Source |
| Power-over-Ethernet: 802.3at Input |
| 12VDC / 2A |
| Maximum Power Consumption |
| 17W |
| Wireless & Radio Specifications |
| Operating Frequency |
| Dual-Radio Concurrent 2.4 GHz & 5 GHz |
| Operation Modes |
| AP, Mesh, AP Mesh |
| Frequency Radio |
| 2.4 GHz: 2400–2482 MHz |
| 5 GHz: 5150–5250 MHz, 5250–5350 MHz, 5470–5725 MHz, 5725–5850 MHz |
| Transmit Power |
| Up to 23 dBm on 2.4 GHz |
| Up to 23 dBm on 5 GHz (limited by regulatory domain) |
| Tx Beamforming (TxBF) |
| Yes |
| Radio Chains / Spatial Stream |
| 4×4:4 |
| SU-MIMO |
| Four spatial streams for 2.4 GHz and 5 GHz delivering up to 3,548 Mbps to a single device |
| MU-MIMO |
| Four spatial streams up to 2400 Mbps on 5 GHz to two MU-MIMO devices |
| Four spatial streams up to 1,148 Mbps on 2.4 GHz to two MU-MIMO devices |
| Supported Data Rates (Mbps) |
| 802.11ax: 2.4 GHz: 9–1148 (MCS0–MCS11, NSS=1–4) |
| 802.11ax: 5 GHz: 18–2400 (MCS0–MCS11, NSS=1–4) |
| 802.11b: 1, 2, 5.5, 11 |
| 802.11a/g: 6, 9, 12, 18, 36, 48, 54 |
| 802.11n: 6.5–600 (MCS0–MCS31) |
| 802.11ac: 6.5–1733 (MCS0–MCS9, NSS=1–4) |
| Supported Radio Technologies |
| 802.11ax: OFDMA |
| 802.11b: DSSS |
| 802.11ac/a/g/n: OFDM |
| Channelization |
| 802.11ax: HE 20/40/80 MHz |
| 802.11ac: VHT 20/40/80 MHz |
| 802.11n: HT 20/40 MHz |
| 802.11n (2.4 GHz): VHT40 MHz (256-QAM) |
| 802.11n/ac/ax: A-MPDU, A-SPDU aggregation |
| Supported Modulation |
| 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM |
| 802.11b: BPSK, QPSK, CCK |
| Max Concurrent Clients |
| 128 per radio |
| Management |
|---|
| Multiple BSSID |
| 8 SSIDs for both 2.4 GHz and 5 GHz radios |
| VLAN Tagging |
| Supports 802.1q SSID-to-VLAN Tagging |
| Cross-Band VLAN Pass-Through |
| Management VLAN |
| Spanning Tree |
| Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) |
| Compliant with IEEE 802.11e Standard |
| WMM |
| SNMP |
| v1, v2c, v3 |
| MIB |
| I/II, Private MIB |
| Wireless Security |
| WPA3 |
| WPA2 Enterprise (AES) |
| WPA2 AES-PSK |
| Hide SSID in Beacons |
| MAC Address Filtering – up to 32 MACs per SSID (standalone), up to 256 MACs per SSID (managed) |
| Wireless STA (Client) Connected List |
| SSH Tunnel |
| Client Isolation |
| Environmental & Physical |
|---|
| Temperature Range |
| Operating: 32ºF ~ 104ºF (0ºC ~ 40ºC) |
| Storage: -40ºF ~ 176ºF (-40ºC ~ 80ºC) |
| Humidity (Non-condensing) |
| Operating: 90% or less |
| Storage: 90% or less |
| Device Dimensions & Weights |
|---|
| ECW212L Device |
| Weight: 1.26 lbs. (0.57 kg) |
| Length: 8.10″ (205.7 mm) |
| Width: 8.10″ (205.7 mm) |
| Height: 1.31″ (33.2 mm) |
| ECW212L Packaging |
| Weight: 1.92 lbs. (0.87 kg) |
| Length: 9.72″ (247 mm) |
| Width: 9.72″ (247 mm) |
| Height: 3.43″ (87 mm) |
| Package Contents |
|---|
| 1 × ECW212L Cloud Managed Indoor Access Point |
| 1 × Ceiling Mount Base (9/16” Trail) |
| 1 × Ceiling Mount Base (15/16” Trail) |
| 1 × Ceiling & Wall Mount Screw Kits |
| Quick Start Guide QR Code |
| Mobile App QR Code |
| Compliance & Warranty |
|---|
| RoHS: Yes |
| Regulatory Compliance: FCC, CE, IC |
| Warranty: 2 Years |
