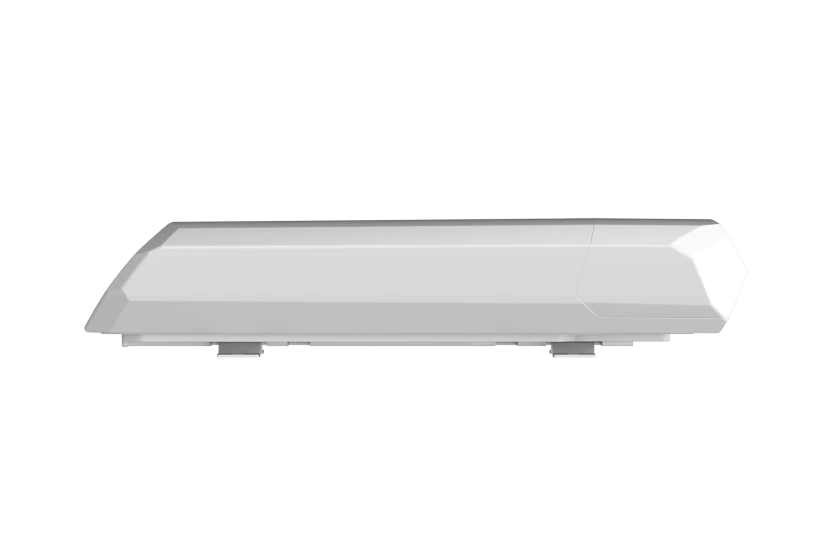

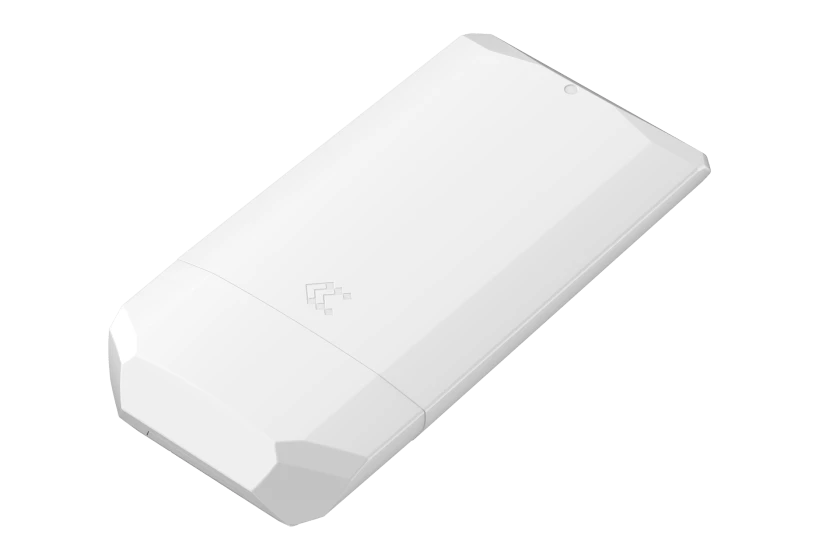

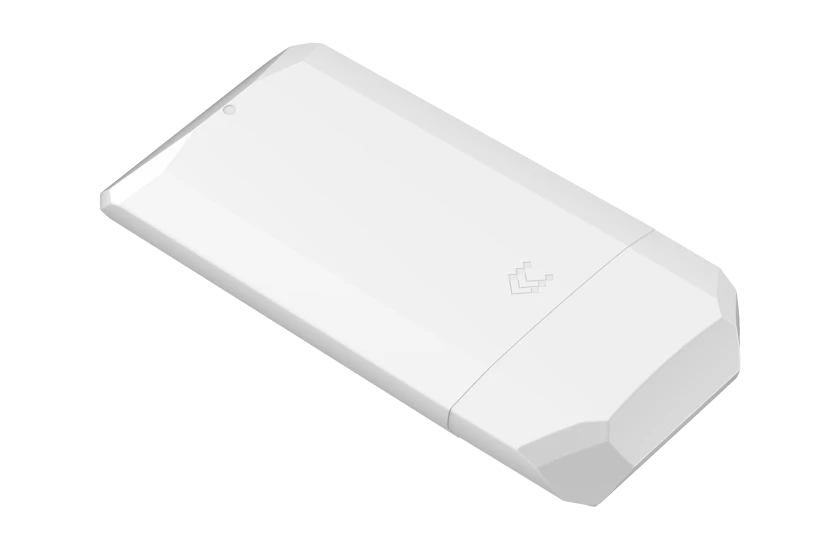

Teltonika OUTDOOR 5G ROUTER
Features
Mobile
|
5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4×4 MIMO), 900/550 Mbps UL (2×2); 4G LTE – LTE Cat 19 1.6Gbps DL/200Mbps UL; 3G up to 42 Mbps DL/5.76Mbps UL |
|
Release 16 |
|
Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans |
|
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
|
IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC |
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
|
Supports sending and reading Unstructured Supplementary Service Data messages |
|
Operator block/allow list (by country or separate operators) |
|
Band lock, Used band status display |
|
Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked |
|
SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN |
|
Auto APN |
|
Direct connection (bridge) between mobile ISP and device on LAN |
|
Router assigns its mobile WAN IP address to another device on LAN |
|
Framed routing: support an IP network behind 5G UE |
Ethernet
|
2 x ETH ports (can be configured as WAN), 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
POE IN
|
1 x PoE In |
|
802.3af/at |
POE OUT
|
1 x PoE Out |
|
802.3af Alternative B |
|
15 W Max (power supply unit dependent) |
Network
|
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
|
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
|
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
|
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
|
Port forward, traffic rules, custom rules, TTL target customisation |
|
View all your Firewall statistics, rules, and rule counters |
|
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on |
|
Visual representation of your network, showing which devices are connected to which other devices |
|
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards |
|
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
|
Supported >25 service providers, others can be configured manually |
|
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS |
|
VRRP, Wired options, each of which can be used as an automatic Failover |
|
Balance Internet traffic over multiple WAN connections |
|
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes |
|
Possibility to mount remote file system via SSH protocol |
|
Initial virtual routing and forwarding (VRF) support |
|
Real-time monitoring, wireless signal charts, traffic usage history |
Security
|
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
|
Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
|
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
|
Port and tag-based VLAN separation |
|
Mobile data limit, customizable period, start time, warning limit, phone number |
|
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
|
Flexible access control of SSH, Web interface, CLI and Telnet |
|
Identification and authentication module, TPM 2.0 standard |
|
Let’s Encrypt and SCEP certificate generation methods |
|
Port-based network access control server |
VPN
|
Multiple clients and a server can run simultaneously, 27 encryption methods |
|
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, |
| BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
|
| XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
|
| GRE tunnel, GRE tunnel over IPsec support |
|
| Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
|
| Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
|
| Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support |
|
| SSTP client instance support |
|
| ZeroTier VPN client support |
|
| WireGuard VPN client and server support |
|
| Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support. |
|
| Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol |
OPC UA
|
Client, Server |
|
TCP |
MODBUS
|
Server, Client |
|
TCP |
|
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality |
|
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
DATA TO SERVER
|
HTTP(S), MQTT, Azure MQTT |
|
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature |
MQTT Gateway
|
Allows sending commands and receiving data from MODBUS Server through MQTT broker |
DNP3
|
Station, Outstation |
|
TCP |
DLMS/COSEM
|
DLMS – standard protocol for utility meter data exchange |
|
Client |
|
TCP |
|
Allows to scan meter COSEM objects for automatic detection and configuration |
API
|
Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com |
Monitoring & Management
|
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status |
|
Firmware update from server, automatic notification |
|
SSH (v1, v2) |
|
|
Receive email message status alerts of various services |
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
|
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer |
|
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
|
MQTT Broker, MQTT publisher |
|
SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
|
Management API over HTTP/HTTPS |
|
Teltonika Remote Management System (RMS) |
IoT Platforms
|
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
|
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions |
|
Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs |
|
Utility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionality |
System Characteristics
|
MediaTek, Dual-core, 880 MHz, MIPS1004Kc |
|
256 MB, DDR3 |
|
16 MB serial NOR flash, 256 MB serial NAND flash |
Firmware / Configuration
|
Update FW from file, check FW on server, configuration profiles, configuration backup |
|
Update FW |
|
Update FW/configuration for multiple devices at once |
|
Update FW without losing current configuration |
|
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration |
FIRMWARE CUSTOMISATION
|
RutOS (OpenWrt based Linux OS) |
|
Busybox shell, Lua, C, C++, and Python, Java in Package manager |
|
SDK package with build environment provided |
|
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs |
|
The Package Manager is a service used to install additional software on the device |
Power
|
RJ45 Socket |
|
42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection |
|
42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection |
|
Idle: < 2.5 W / Max: < 9 W / PoE Max < 24 W |
Physical Interfaces
|

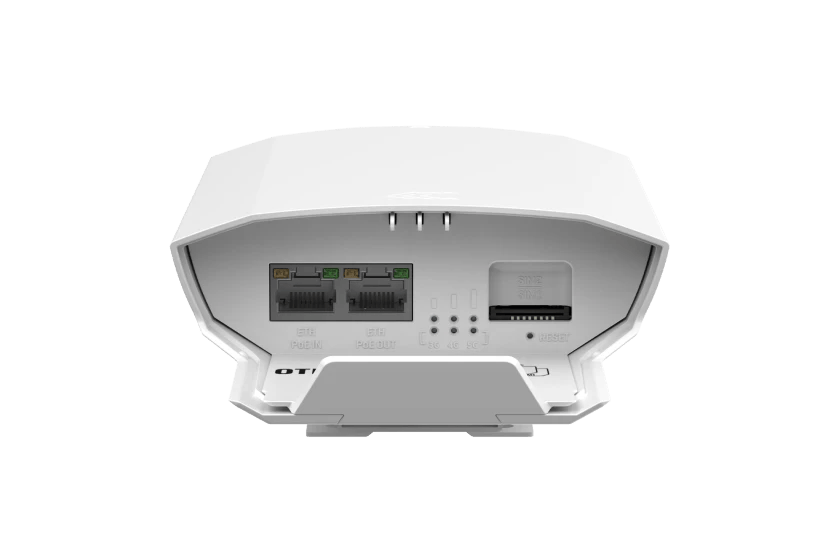

2 x RJ45 ports, 10/100/1000 Mbps |
|
3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs |
|

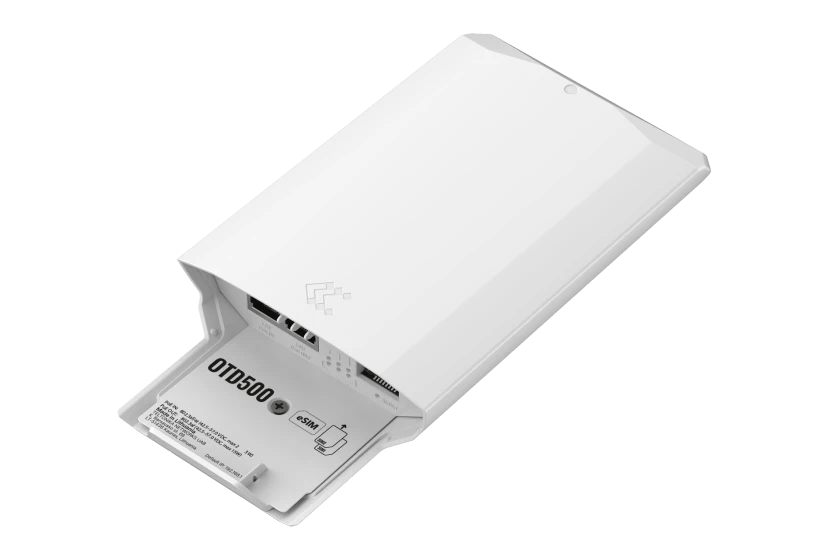

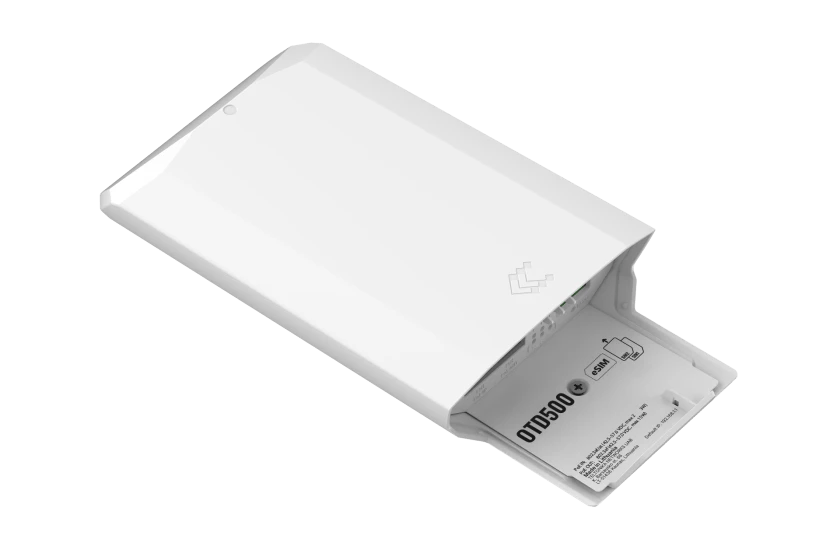

2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V |
|
RJ45, PoE In, 42.5 – 57.0 VDC |
|
4 x internal antennas |
|
4 x 617 – 960 / 1695 – 2690 / 3300 – 4200 / 4200 – 5000MHz, 50 Ω, VSWR <3.5, gain <4.9 dBi, omnidirectional |
|
Reboot/User default reset/Factory reset button |
Physical Specification
|
Plastic (PC+ASA) |
|
110 x 49.30 x 235 mm |
|
385 g |
|

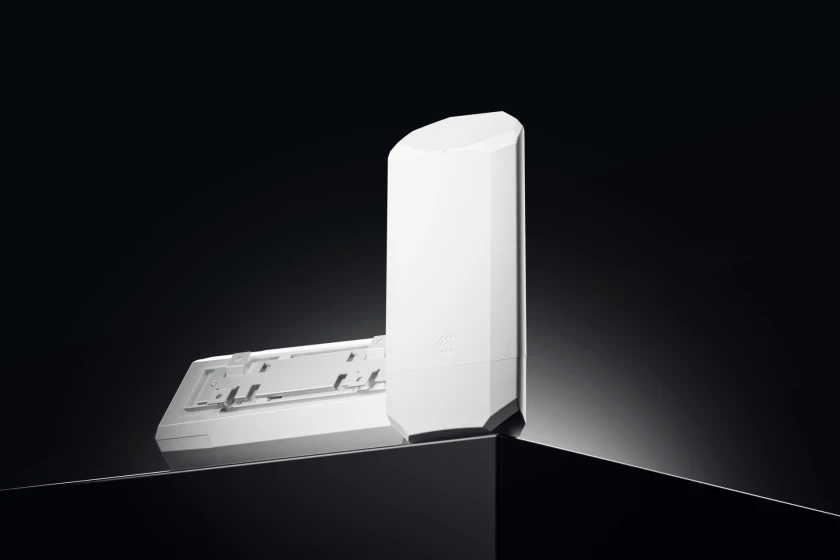

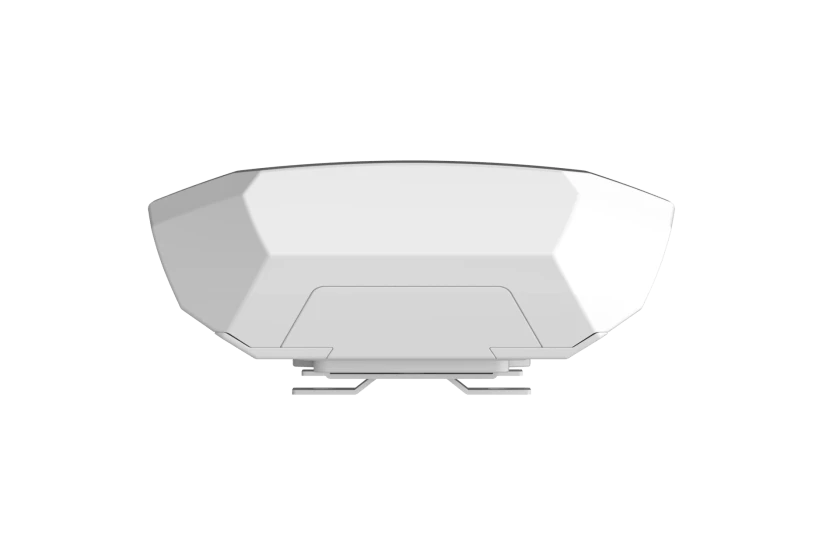

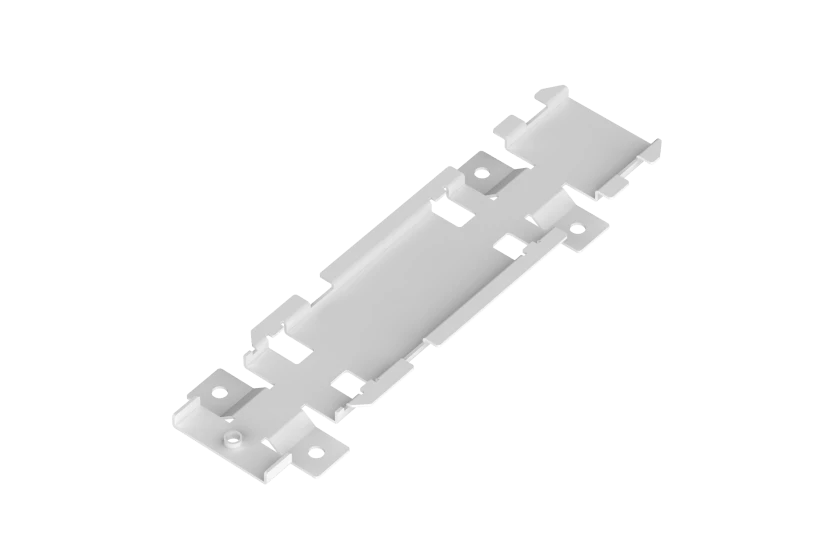

Mounting bracket (for vertical flat surface or pole mounting) |
Operating Environment
|
-40 °C to 55 °C |
|
10% to 90% non-condensing |
|
IP55 |
Regulatory & Type Approvals
|
CE, UKCA, RCM, CB, EAC, UCRF, WEEE |
EMC Emissions & Immunity
|
EN 55032:2015 + A11:2020 + A1:2020; EN 55035:2017 + A11:2020; EN IEC 61000-3-2: 2019 + A1:2021; EN 61000-3-3: 2013 + A1:2019 + A2:2021; EN 301 489-1 V2.2.3; EN 301 489-52 V1.2.1 |
|
EN 61000-4-2:2009 |
|
EN IEC 61000-4-3:2020 |
|
EN 61000-4-4:2012 |
|
EN 61000-4-5:2014 + A1:2017 |
|
EN 61000-4-6:2014 |
|
EN 61000-4-11:2020 |
RF
|
EN 301 908-1 V13.1.1 |
| EN 301 908-13 V13.1.1 | |
| EN 301 908-2 V13.1.1 | |
| EN 301 908-25 V15.1.1_15.0.6 |
Safety
|
CE: EN IEC 62368-1:2020 + A11:2020, EN 62311:2020 |
| RCM: AS/NZS 62368.1:2022 | |
| CB: IEC 62368-1:2018 |
