Ubiquiti U6-LR – Indoor AP

High-performance, indoor/outdoor WiFi 6 access point with extended signal range.

Features:

  • 5 GHz WiFi 6 band (4×4), 2.4 GHz WiFi 4 band (4×4)
  • 3.0 Gbps aggregate throughput rate
  • Horizontal, downward-tilted antenna pattern to widen coverage area

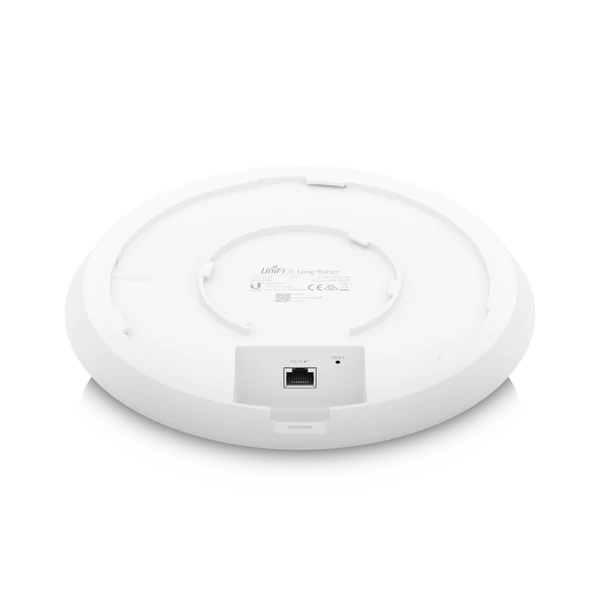

  • (1) GbE RJ45 port (PoE In)
  • Powered with PoE+

Managed with UniFi Network application: Version 6.0.34 and later



Adopt the U6-LR in Minutes with Your UniFi Network Application and:

  • Centrally manage multiple networks from an intuitive interface
  • Enjoy real-time device insights and deep configuration options
  • Upgrade device firmware remotely
  • Manage network users and guests with ease
  • Personalize the design, architecture, and privacy of guest hotspots
  • Set up devices quickly and manage them on the go with a powerful mobile app

View Data Sheet Here :

CNET CAT6 UTP COPPER CABLE 24 AWG LSZH 305M BOX 1

Add to quote
SKU: U6-LR Categories: ,

Ubiquiti Indoor Access Point U6-LR (Long-Range)



PRODUCT SPECIFICATION

Mechanical
Dimensions Ø220 x 48 mm (Ø8.7 x 1.9″)
Weight Without mount: 800 g (1.8 lb)
With mount: 930 g (2.1 lb)
Enclosure material Polycarbonate
Mount material SGCC steel
Weatherproofing IP54
Hardware
Networking interface (1) GbE RJ45 port
Management interfaces Ethernet
Bluetooth
Power method PoE+
Power supply UniFi PoE switch
48V, 0.5A PoE adapter (not included)
Supported voltage range 44—57V DC
Max. power consumption 18.5W
Max. TX power
2.4 GHz 26 dBm
5 GHz 26 dBm
MIMO
2.4 GHz 4 x 4
5 GHz 4 x 4
Throughput rate
2.4 GHz 600 Mbps
5 GHz 2400 Mbps
Antenna gain
2.4 GHz 4 dBi
5 GHz 5.5 dBi
LEDs White/blue
Button Factory reset
Mounting Wall/ceiling (included)
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)

Know more about ubiquiti. Please contact us for further information!
