Ubiquiti Networks US-8-60W UniFi 8-Port Gigabit PoE
Ubiquiti Networks US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch
Ubiquiti Networks US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch
Ubiquiti Networks US-8-60W UniFi 8-Port Gigabit PoE
Ubiquiti Networks US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch
Ubiquiti Networks US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch

Ubiquiti Networks US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch

Code: US-8-60W

The fully manageable US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch from Ubiquiti Networks features 8 Gigabit Ethernet ports in a small form factor offering improved performance and intelligent switching capabilities for expanding networks. In addition to the 8 Gigabit Ethernet ports, this switch offers 8 Gbps non-blocking throughput, a 16 Gbps switching capacity, and a 11.9 mpps forwarding rate. It also delivers up to 15.4W of power per PoE port.

Add to quote
SKU: US-8-60W Category:

Ubiquiti Networks US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch

Hardware Features

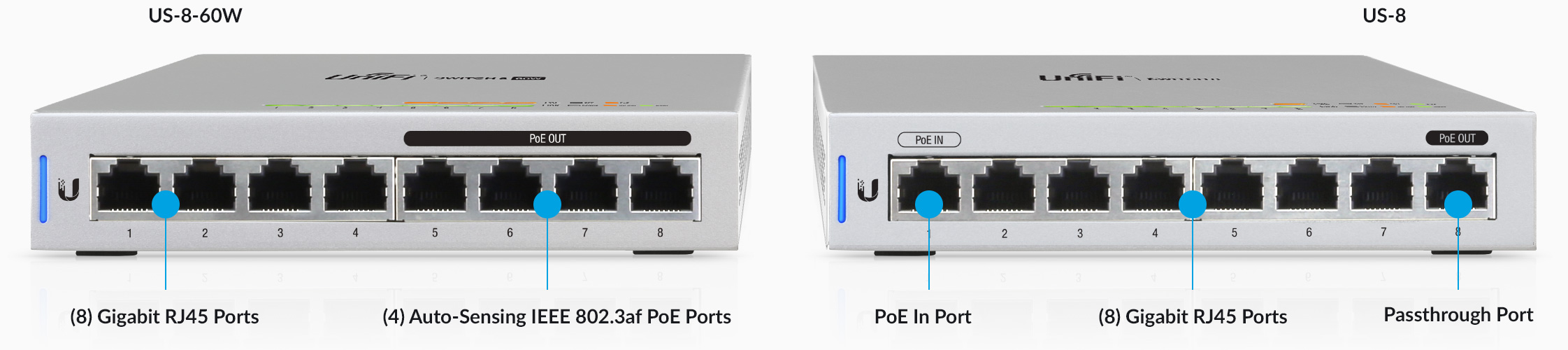

• 8 x Gigabit RJ-45 ports
• 4 x Auto-Sensing IEEE 802.3af PoE ports
• Non-Blocking Throughput: 8 Gbps
• Switching Capacity: 16 Gbps
• Forwarding Rate: 11.9 Mpps
• Maximum Power Consumption: 12W

Switching Performance

The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
For its total, non-blocking throughput, each supports up to 8 Gbps with a switching capacity of 16 Gbps.

UniFi Controller

Multi-Site Management

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

Switch Configuration

You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1x control and RADIUS VLAN
• Debug terminal option for command-line interface

Switch Port Status

You can also view status information for each port:
• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting

Statistics

The Switch Statistics screen displays a graphical overview of all LAN throughput for each port on the selected switch. Under the same pane of glass, it also shows LAN, WLAN, and Internet traffic, including the breakdown of protocols being used (requires a UniFi Security Gateway, sold separately).
For further information, please contact us.
