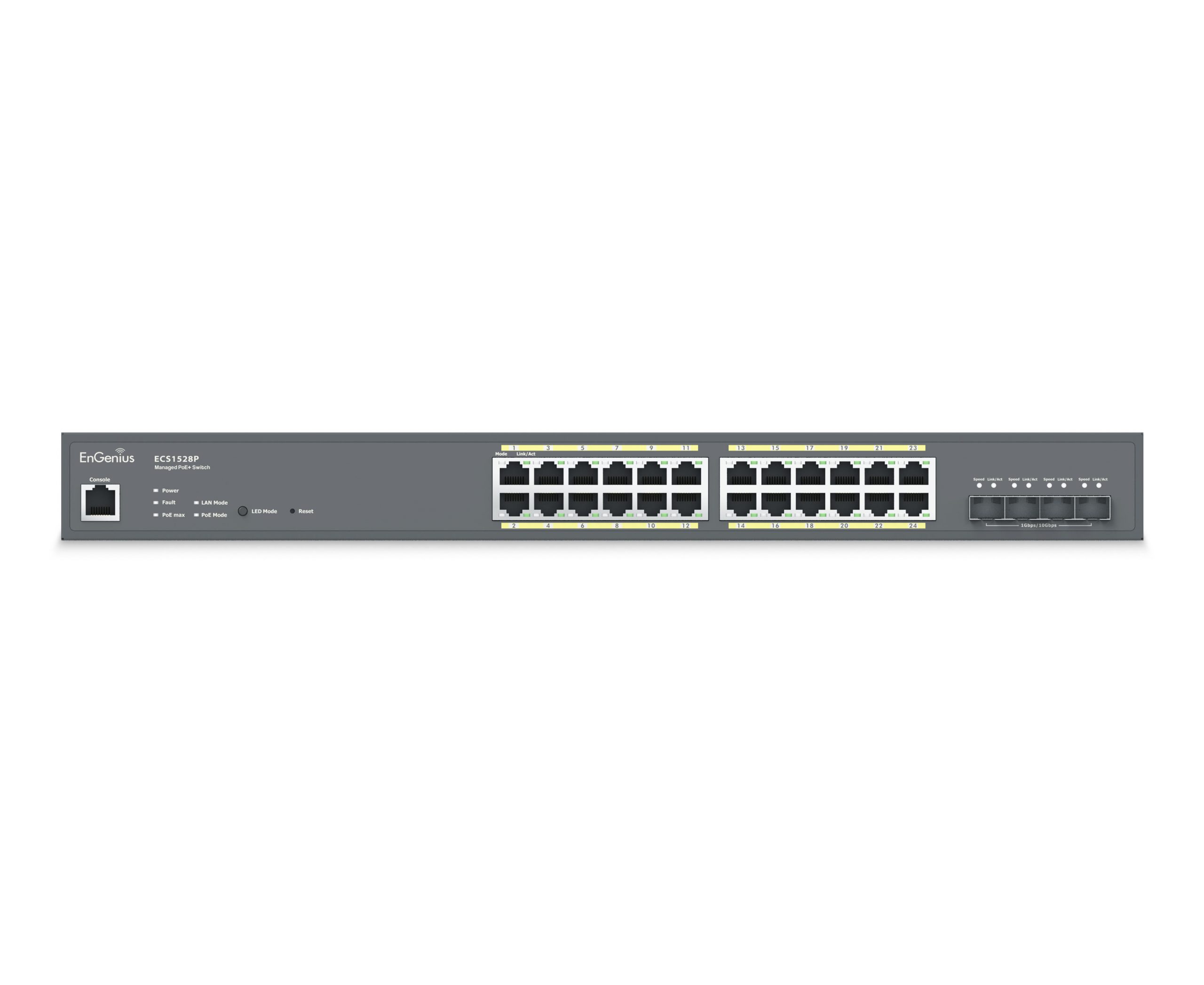

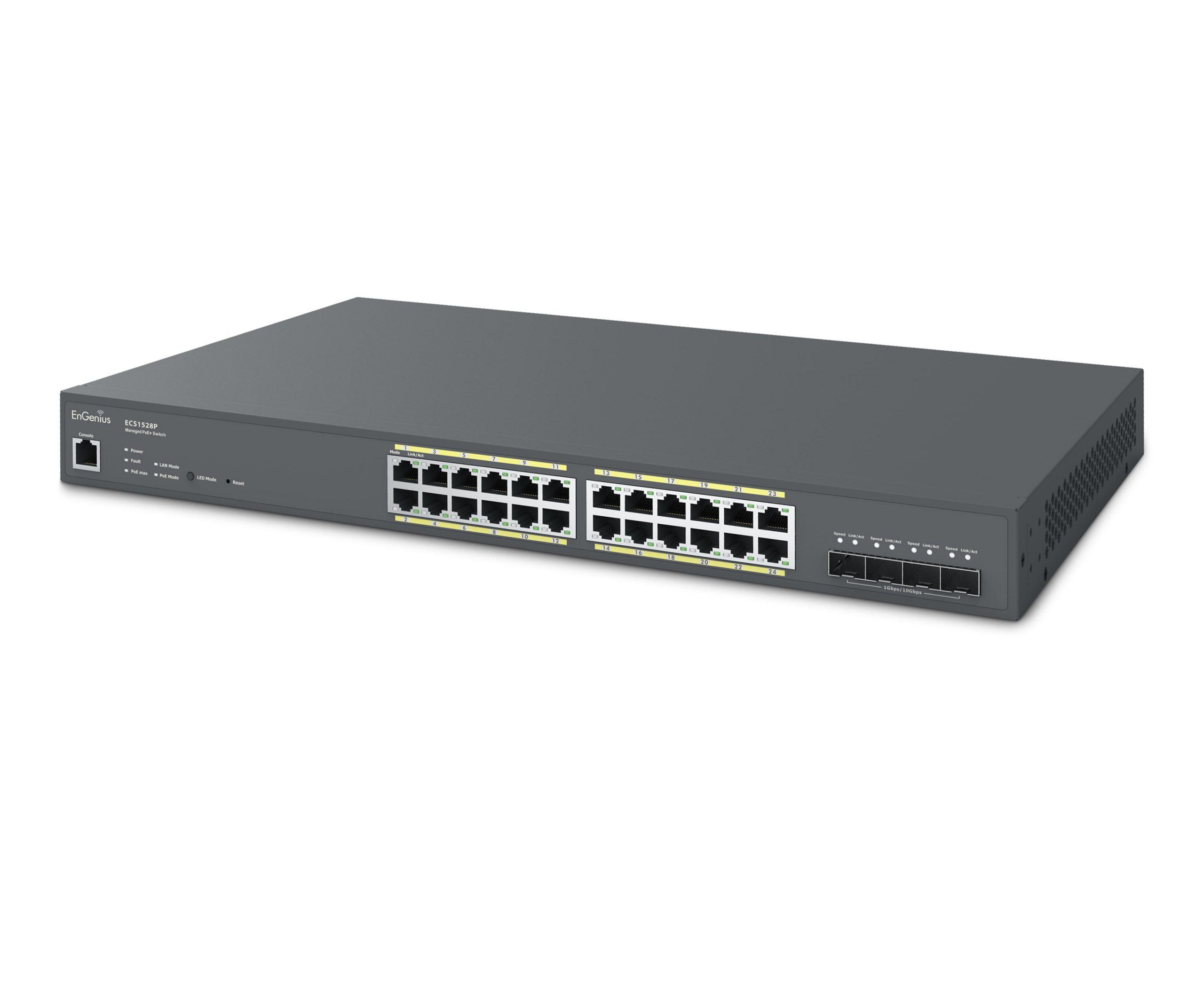

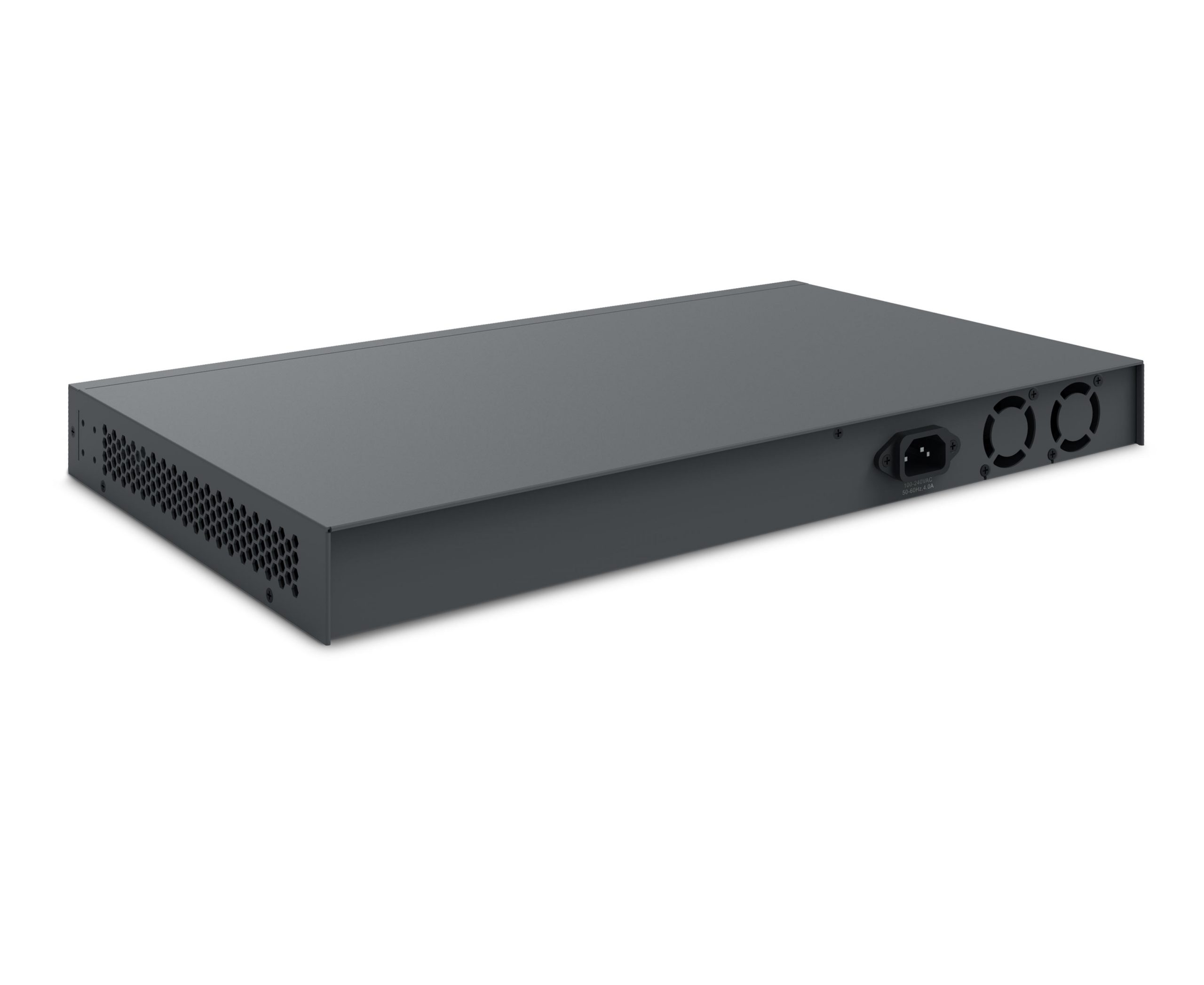

EnGenius Cloud Managed 240W 24-Port Gigabit Switch PoE+ with 4 SFP+ Ports – ECS1528P
Product Highlights
EnGenius Cloud ECS1528P is a 24-Port Gigabit PoE+ Layer 2+ Switch with a 240W Budget, 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.
- 24 10/100/1000 Base-T GbE Ports
- Full-Featured Layer 2+ Switching
- 802.3 at/af PoE+ Ready on All Ports with 240W PoE budget
- 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
- PoE Extended Mode – Extend PoE Ethernet cable deploying range up to 250 meters
- PD Lifeguard – Real-time detecting and auto-reboot PoE power for failed camera
- Continuous PoE Power – Steady supply of PoE power for camera during switch upgrades
- Quick-Scan Device Register, Remote Monitoring and Troubleshooting
- Hybrid Switch Supports Multiple Management Options
Technical Specifications
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
24 10/100/1000 Mbps Ports + 4x SFP+ Ports
Switching Capacity
128Gbps
SDRAM
512MB
Flash Memory
128MB
PoE+ Capable Ports
1-24
Total PoE Budget
240W
Power Source
100 ~ 240VAC, 50-60Hz
Physical Interface
LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports
Link/Activity/Speed (per Ethernet port)
Software Features (L3 Features)
Multiple IP Interface
20 IPv6 address
ARP Table
Max. 192 ARP entries
Static ARP
Static 192 ARP entries
IPv4 Static Route
Max. 63 entries
IPv6 Static Route
Max. 21 entries
Software Features (L2 Features)
MAC Address Table
16K
Jumbo Frame
10K
Multicast Group
Max 256 groups
MLD Snooping
MLD Snooping: v1
QoS-Number of Priority Queues Supported
Queue 8
Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP
Scheduling Mechanism
Strict / WRR/ Strict + WRR
Bandwidth Control
Port-based bandwidth control (Ingress/Egress)
Port Security
Max. 256 Entries
Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL
